Description:
1.2 layer PCB bard designing.
2. Compliant with PCI express 2.0, 1.1 Specification

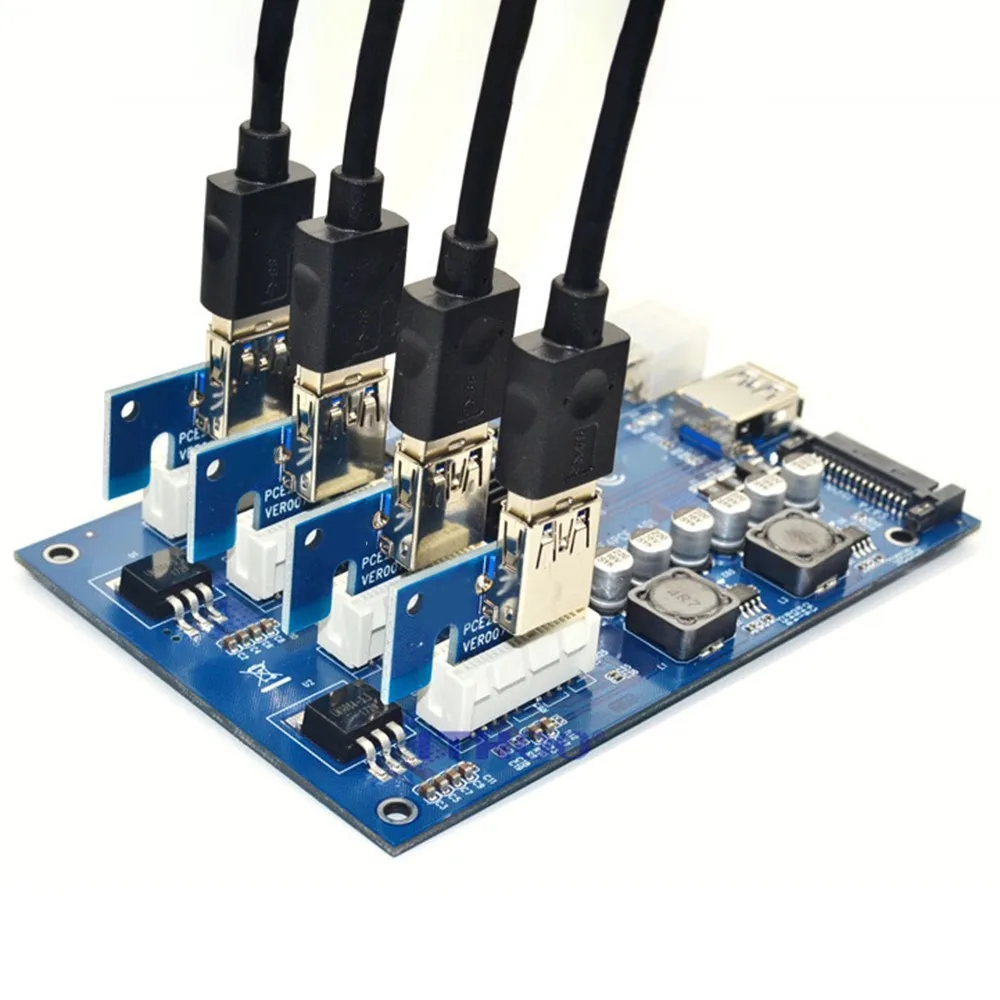

3. 1-slot PCI-E 1X to 4 slot 1X riser card with high speed USB 3.0 cable.
4. High speed USB 3.0 shield cable is flexible for 1U,2U,3U chassis.
5. Support 4 port high speed PCIe 1X card.6. Solid capacitor provide extra stable power supply for PCI-e card.
Instructions:

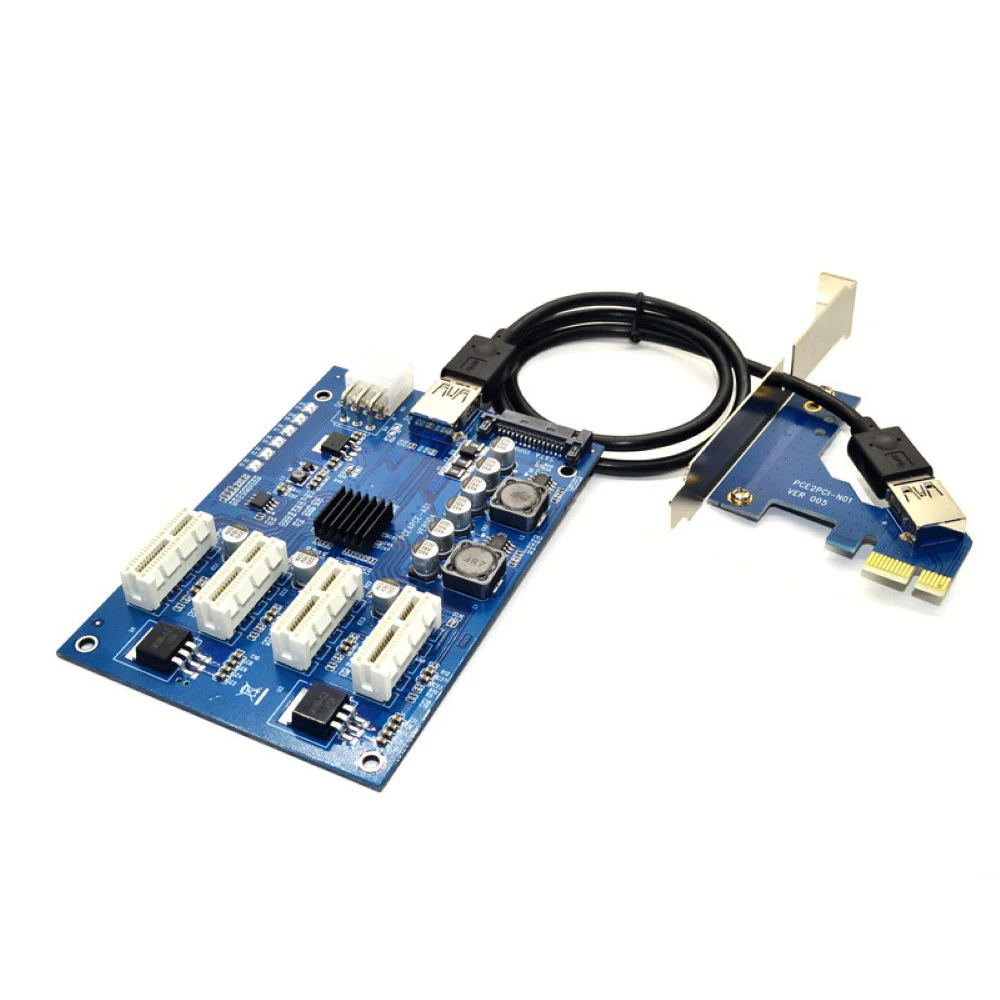

If you need more than one PCI-E x1 slot on the motherboard was not any so much, it touches you can think about it. It consists of two parts, one main card, interface, installed via PCI-E X1 on the motherboard, two equipment cards, both of which are connected together via USB 3.0 cable.
The device card also uses the United States Pericom Pericom PI7C9X bridge chip, for switching PCI-E, PCI-E between.
But even USB 3.0, but also the theoretical bandwidth 5Gbps (625MB/s), one Into four Then remove the loss would only 150MB / s, and even PCI-E 1.x single-channel bandwidth also has 250MB/s, so this stuff more than enough to give you the best slots, there will not be enough bandwidth, not only for the performance requirements of the place.
Therefore, the transferred PCI-E slot is the best version above 2.0, the 3.0 version is better.
Several Divided PCI-E 1X slot all is gen2 mode, even if gen1 previously ,it can be ok.
Specification:
Item type: PCI-E X1 to 4PCI-E X16 Expansion Kit
Color: Blue
Material: Plastic+metal

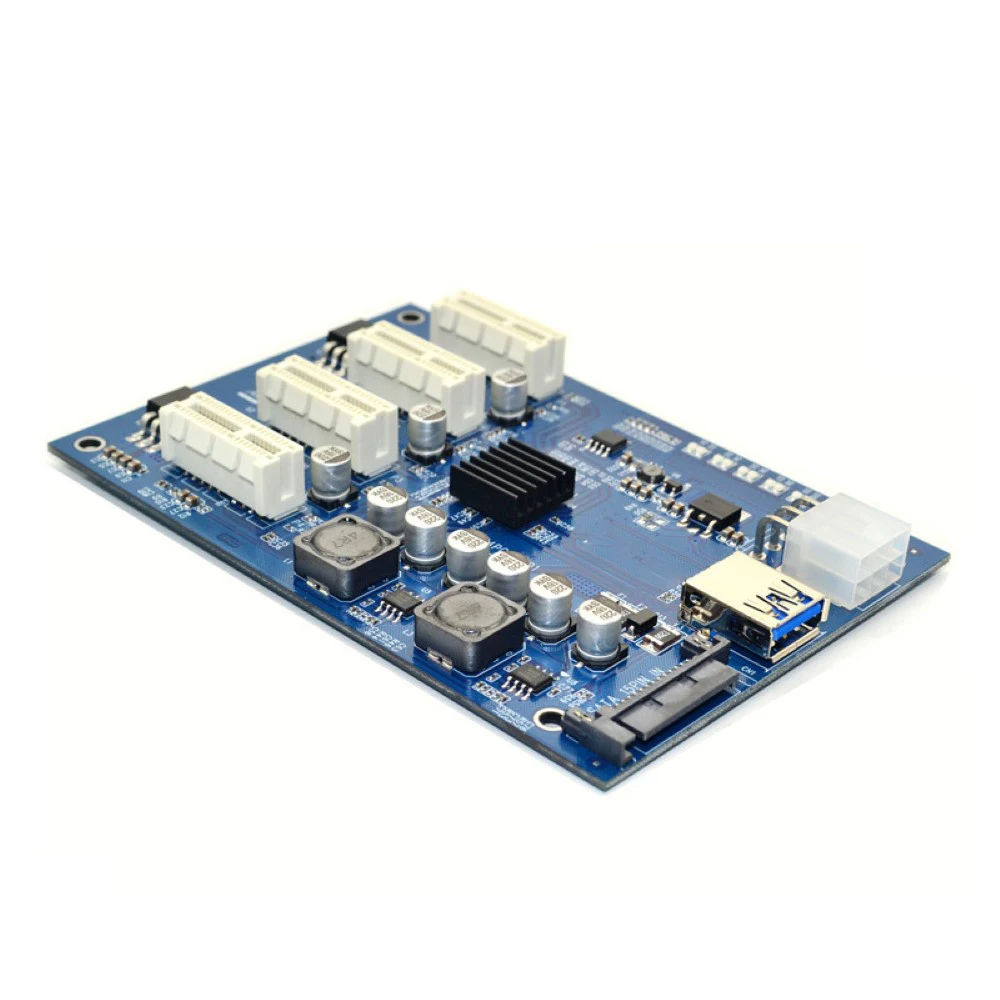

Mainboard size: 9.7×6.3×1.3cm
Product interface: PCI-E 1X
PCI-E 1X Card size:11.9×6.6×1.9cm
Cable length: 60cm
Supported system: Compatible for Linux Mac/all Windows systems
Note:
There might be little error of size for manual measurement.
The colors deviation might differ due to different monitor settings, please kindly understand.
Packing list

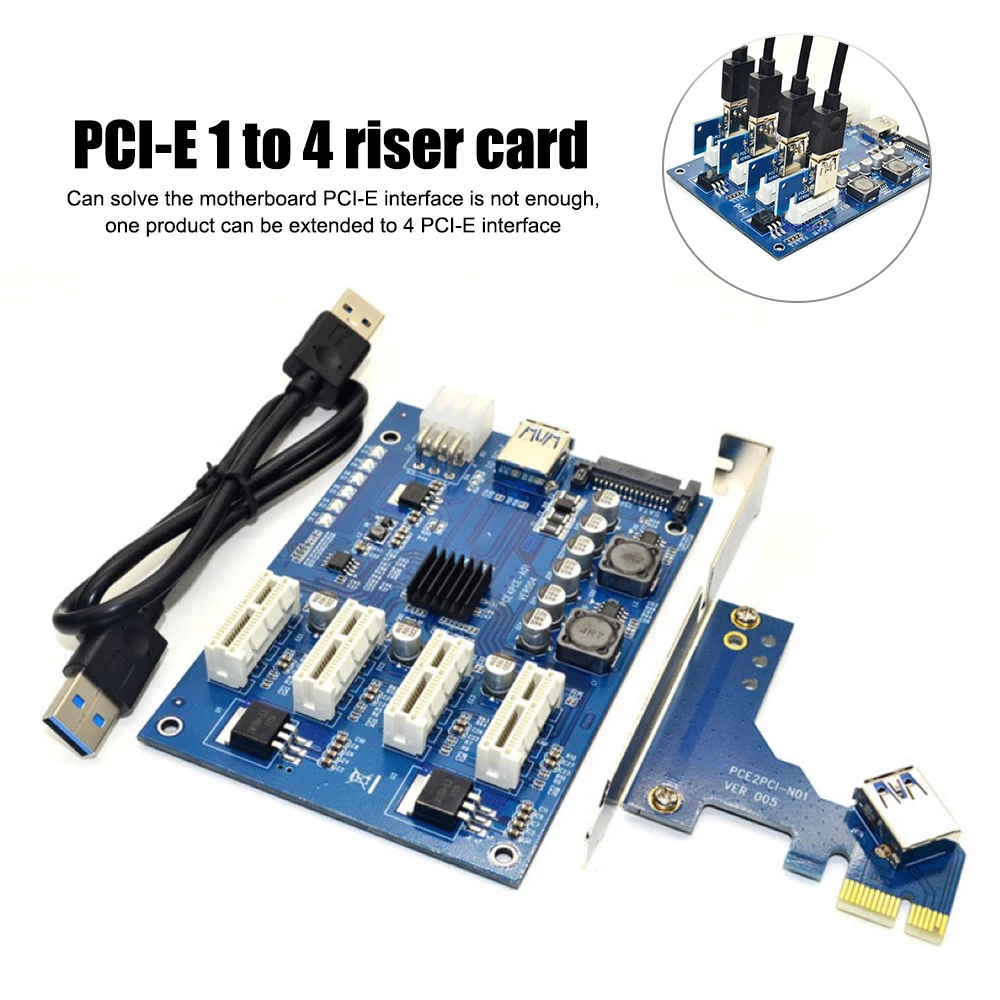

Package Includes:
1 x 1 to 4 Mining Board Adapter
1 x PCI-E 1X Riser Card
1 x USB 3.0 Cable
