EYK E3002 Professional UHF Karaoke Wireless Microphone System Long Range Dual Metal Handheld Mic Transmitter with MUTE Function

Click this link if you need E3002 + Carrying case

Delivery

Russian Federation : Ship from Moscow
EU countries : Ships From Czech Republic
USA : Ship from Los Angeles

E3002

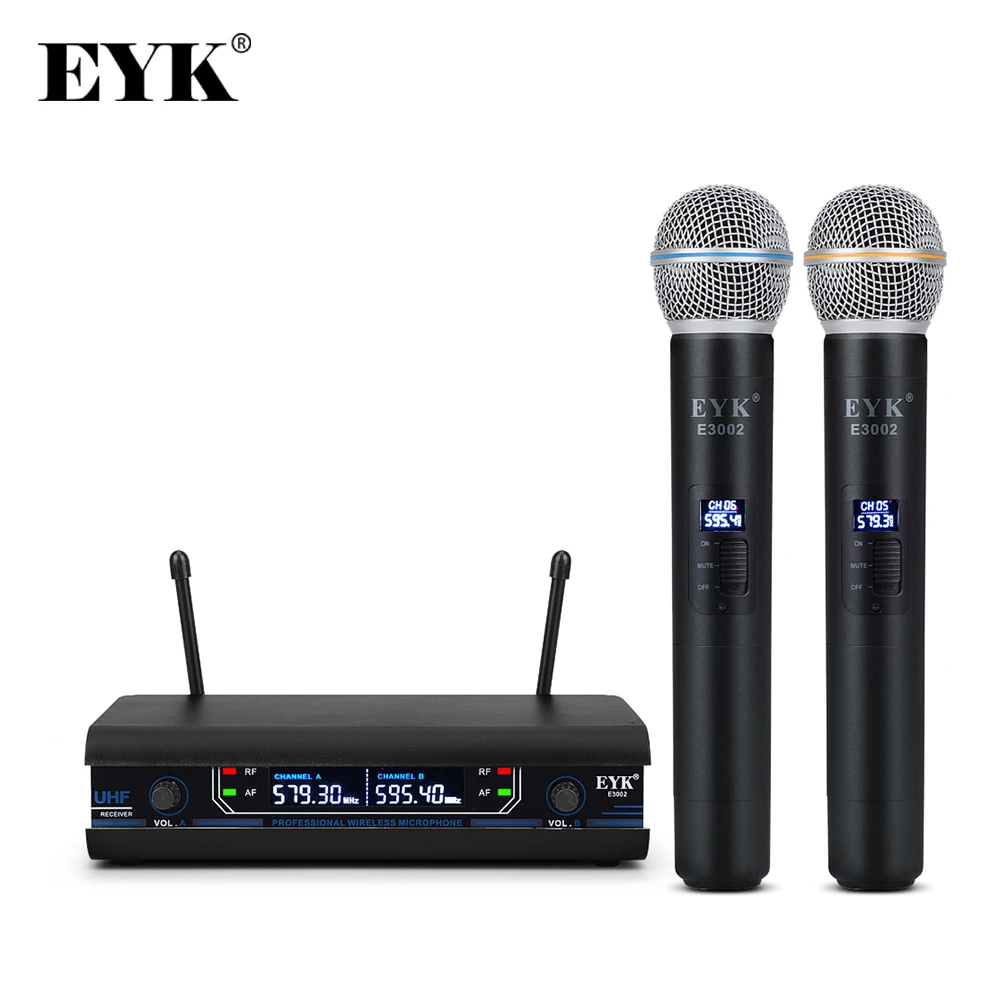

2 Channel UHF Wireless Microphone System with Dual Whole Metal Handheld Mic Transmitter MUTE Function

Key Point:

1. UHF Band Fixed Frequency
Frequencies A: 558.50 MHz, 574.60 MHz,
Frequencies B: 577.70 MHz, 593.80 MHz
Frequencies C: 579.30 MHz, 595.40 MHz
Frequencies D: 580.90 MHz, 597.00 MHz
Frequencies E: 582.50 MHz, 598.60 MHz
Please tell me which frequency are you want,or we will sent it random.

2. Transmitter: 2 pcs Whole metal handhled microphones with MUTE function.

3. Receiver front: Plastic Box ,Backlit screen, Individual Volume Knob, AF/RF Indicator.

4. Receiver back: ON/OFF Knob, Power interface, Two XLR individual outputs and one 1/4″” Mixed output.

5. Range: up to 200 feet (up to 60 meters), suitable for karaoke, speech, party, church, etc.

6. Transmitter battery: 4*1.5V AA(not included)

Receiving distance

up to 200 feet (up to 60 meters)

Packing list:

1. Microphone 2pcs
2. Receiver 1pc
3. Audio cabel 1pc
4. Power adapter 1pc
5. User manual 1pc
6. Anti-slip ring 2pcs
7. 1.5V Battery Needed 4pcs (Please note: Due to transportation reasons, the battery is not issued with the goods, please purchase by yourself, thanks!)

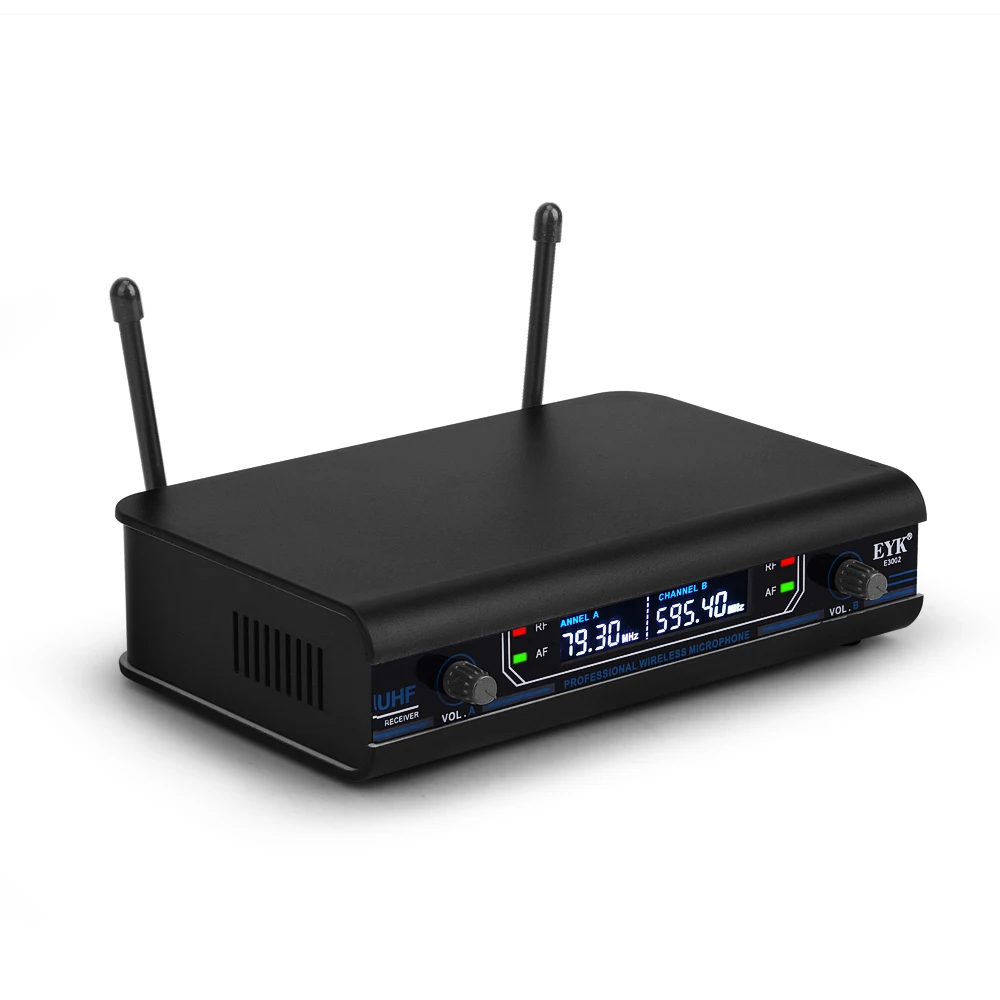

Receiver front panel function:

1. AF Led Indictaor
when RF indicator is on, microphone A/B power is on
1) Microphone A/B pick up the sound, the AF light is on
2) no sound is picked up, the AF light is off.
2. RF Led Indictaor
when the receiver is on “working” status,
1) Microphone A/B no power, left/right RF light is off
2) Microphone A/B is on, left/right RF light is on
3. Backlit Screen: the screen will not change.
4. Volume Knob:
clockwise: volume from low to high
anticlockwise: volume from high to low.

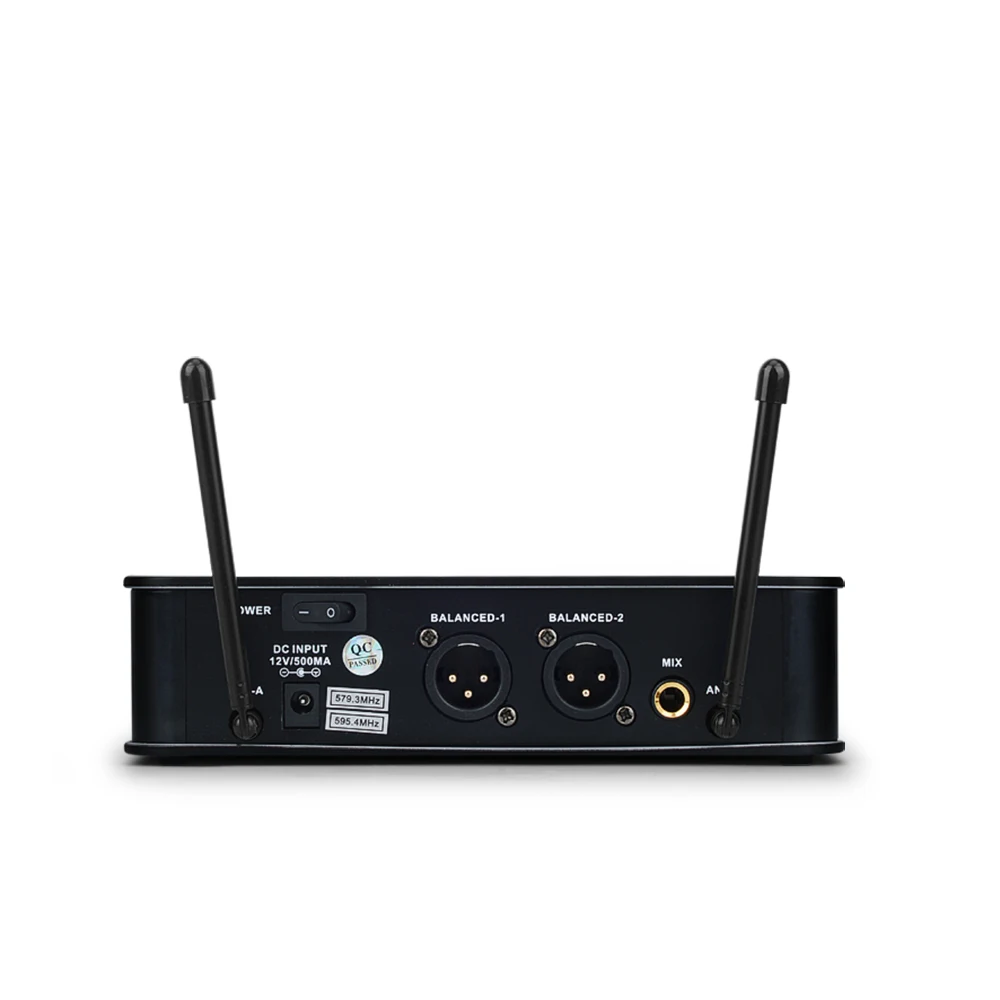

Receiver back panel function:

1. Mic A and Mic B XLR socket:
1) Need XLR cable:(not included in the package)
2) From the socket,
A) you can link the receiver to audio mixer
B) then you can controld the microphone A or microphone B separately.
2. Mix out socket:
1) Need 6.35mm plug cable.(included in the package)
2) From the socket,
A) you can link the receiver to amplifer/speaker,etc.
B) you only can control the microphone A and B together.

Transmitter:

1. Material: Whole Metal Handheld Mic
2. Net weight : 0.35KG
2. Power Switch: ON/MUTE/OFF design

3. Cartridge: High Sensitivity Microphone Core
1) Type: Dynamic
2) Polar pattern: Cardioid

4. Battery Compartment: 2*1.5V AA Battery Needed (not included)

Parameter

System Specifications:
Frequency Range: UHF 500-600MHz(We have 5 set frequency)
Oscillation Mode: Quartz Controlled Fixed Frequency
Frequency Stability: ±0.005%
Dynamic Range: ＞110dB
Maximum Frequency Deviation: ±45KHz
Frequency Response: 60Hz-18KHz（±3dB）
S/N: >105dB
T.H.D: ≦0.5%
Working range:60Meters (Without obstacle)

Receiver Specifications:
Wireless Interface: BNC/50WΩ
Sensitivity: 12dB（80dBS/N）
Spur Suppression: ＞80dB
Power Supply：DC 11-16V（rated 12V）

Transmitter Specifications:
Output power: 10mW
Spur Suppression: -60dB
Power supply: 2×1.5V AA battery
Battery life: About 10 hours

Product Size

Receiver:
Width: 190mm (7.5in)
Length: 120mm (4.7in)
Height: 45mm (1.8in)

Transmitter:
Length: 245mm (9.5in)

Kindly note:

1. We have Four Power adapter Options :
1) EU Plug
2) US Plug
3) UK Plug
4) AU Plug

2. Please confirm the frequency is ok for you.
If you need other frequency, please tell us before you order.
