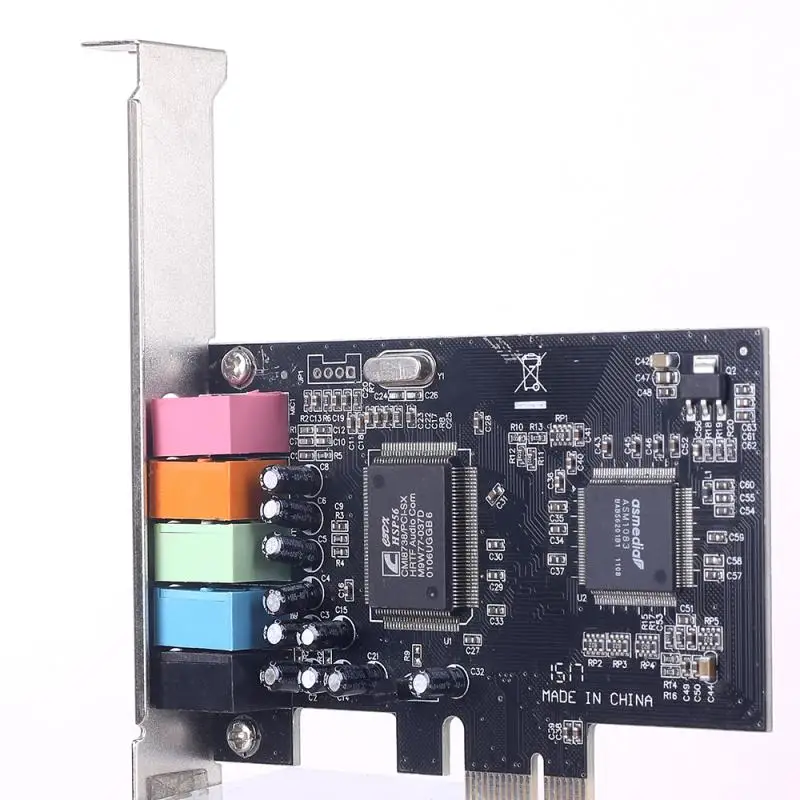

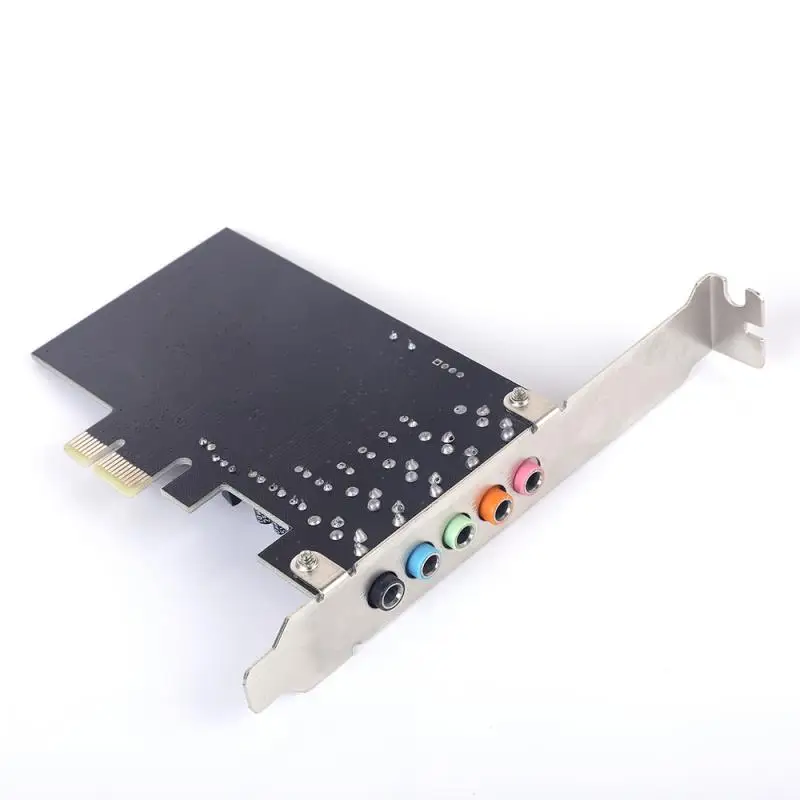

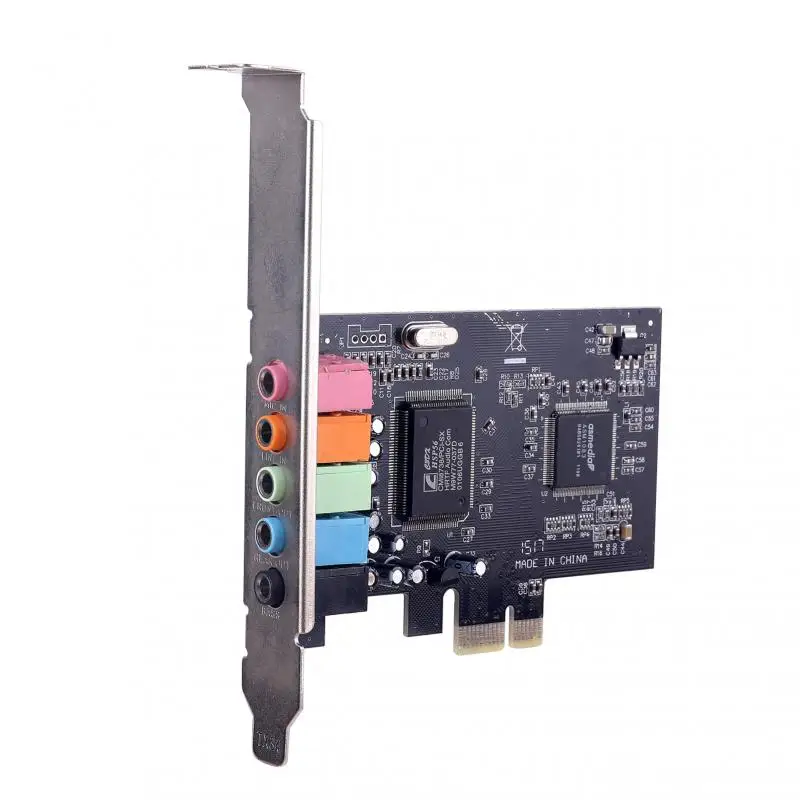

Internal 5.1 3D Stereo PCI-e X1 Audio Card 32/64 Bit Sound Card PCI Express Adapter For PC Windows 10 With Low Profile Bracket

Internal 5.1 3D Stereo PCI-e X1 Audio Card 32/64 Bit Sound Card PCI Express Adapter For PC Windows 10 With Low Profile Bracket

Description:

product description:

Adopt CMI8738 5.1 multi-channel sound effect chip PCI-e sound card adopts PCI-Express bus slot, supports 6-channel surround sound output, supports DLS sound library technology, supports A3D 1.0 and DS3D, and is compatible with DirectSound 3D and EAX sound effects. Support 24-bit SPDIF OUT and SPDIF IN (optional), provide surround sound field and clear sound quality, suitable for home theater, large-scale 3D games, enjoy music, karaoke and other entertainment.

Product parameters:

1. Full-duplex 5.1-channel PCI-Express sound card

2. Use VIA VT1723 Envy24D multi-channel sound chip

3. Comply with PCI-Express x1 specification revision 1.1

4. Comply with AC’97 standard revision 2.3

5. Sound sampling rate 24-bit, 48 KHz supports playback and recording

6. Support front L/R, surround L/R, Centre/Subwoofer, S/PDIF-Out

7. Optional daughter card supports rear surround L/R, linear input L/R, mono Mic-In, S/PDIF-In

8. When the PC power is off or on, the noise balance cancellation function

System Requirements:

Operating system support MS Windows 7/Vista/XP/Server 2003-2008 32/64-bit, 2000, ME, 98SE OS PC computer with PCI-Express slot

Specifications:

Item No.:

PCI-E sound card

Types of :

Home

Interface:

PCI-E

Input and output interface:

Linear output (rear), linear output (front), analog CD audio input, microphone input, linear input, digital CD audio input

Support audio channel:

5.1 channel

Chip:

8738

Installation method:

Built-in

product weight :

0.08 (KG)

Package Included:

1*PCIe sound card
