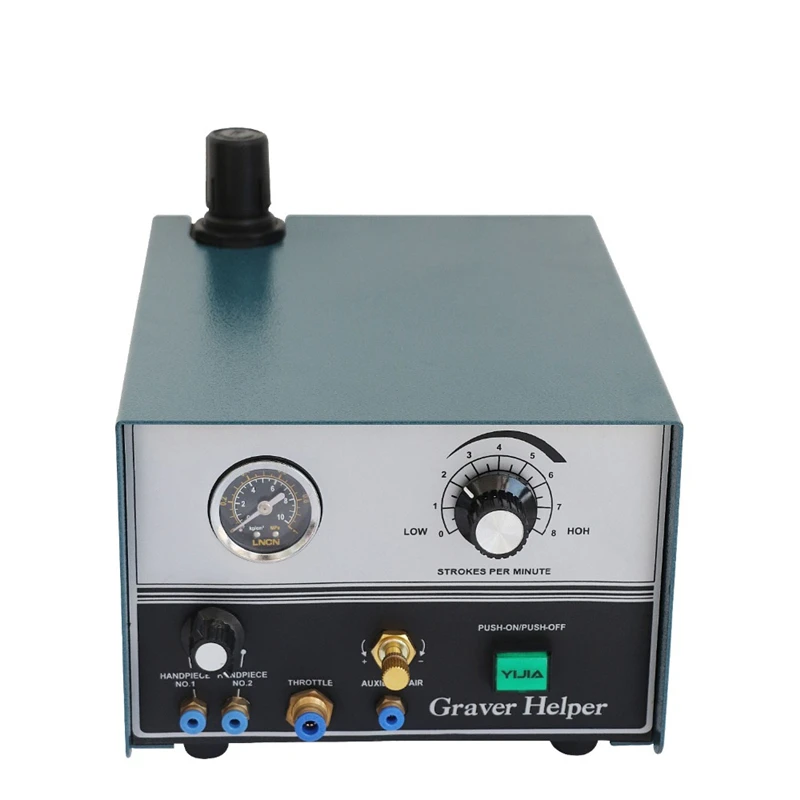

Pneumatic Engraving Tools Jewelry Engraving machine Graver machine Double Ended Impact Graver 220/110V US/EU Plug

{infomdescirption}

Features:
1.engraving machine used for a period of time, it should be the back of the machine reducing valvee cupsdrained.
2.to mechanical oil adding an appropriate amount of the 10th size carved handle!
3.If the fault, not blindly demolished, the staff checks and maintenance.

Specifications:
Power Supply: AC 220V (110V option) 50-60Hz
Power Consumption: 75W
Diameter(L*W*H): 260*210*250(mm)
Packing Size: 315*270*250mm
Aiir Pressure: 0-3kg/cm*cm
Rotate Speed: 100~4000RPM
Weight: 8kg
Voltage: 220v,50-60HZ
Accessories Handpieces 2PCS,Foot Control 1PC,Cable 1PC.

Installation:
1.size carved handle. Foot opening panel interface connector.

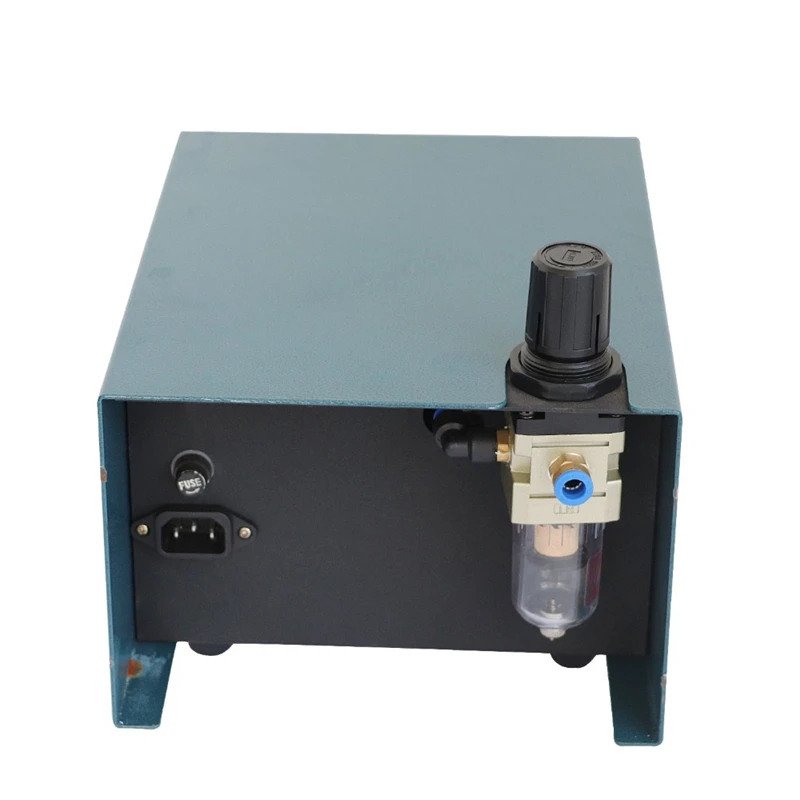

2.the aiir compressor trachea insert aiir intake on the back of the engraving machine, it is recommended that theinstallation of relief valves and water separation filter, aiir compressor and engraving machine pipeline toincrease machine performance.

Operation:
1.The first pressure adjustment knob and rotate the handle switch shut down to avoid the pressure too greatdamage to the pressure in the table and the pressure relief valvee
2.power, turn on the power switch. (Light)
3.the position of the changeover switch is set to 1 or 2
4.adjust the aiir pressure and speed, hand carved handle by stepping foot switch to adjust the pressure knobslowly. Pressure gauge indicates 1.5 ~ 2KG/CM2, adjust the speed knob at the same time, the combination of the two regulation carving handle the biggest impact, pressure adjustment knob is pressed.
5.the relaxing foot switch, carving the handle to stop working, as shown below loaded tool!
6.size carved handle switch, turn the the conversion handle set and 2 and 1osition (should go to bits)
7.rotary engraving handle work, turn off the power switch, open the rotating handle switch, adjust the pressureknob.
8.hours of work with the footswitch opening increases smooth small to large control impact

Package Included:
1 x Engraving Machine
