Universal 2 Channel Receiver AC/DC 9-24V 433mhz Fixed Code And Rolling Code Remote Control Receiver For Gate Garage Door

Universal 2 Channel Receiver AC/DC 9-24V 433mhz Fixed Code And Rolling Code Remote Control Receiver For Gate Garage Door

Description:

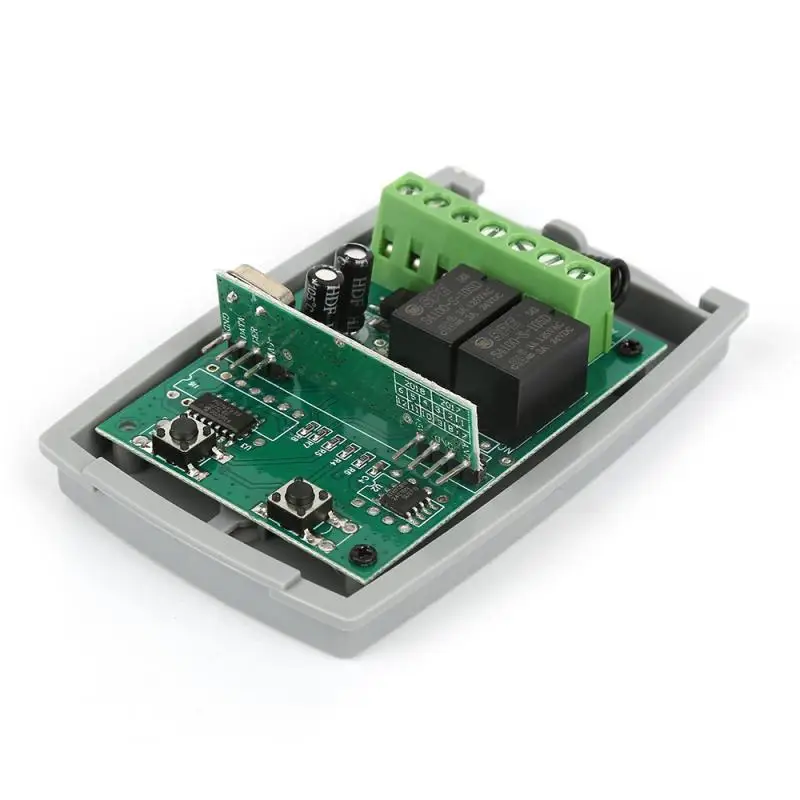

Press the learning button on the controller, release the learning button after the LED light is on, the controller enters the learning state, and then press the remote control button that needs to control the controller, when you see the controller’s LED light flashing 5 It turns off after the second time, indicating that the learning has been successful. The remote controller learned by the learning button 1 on the controller corresponds to relay 1, and the learning button 2 corresponds to relay 2. After learning, only jog is enabled. If the remote control is lost, if you want to make the remote control all invalid, you should long press the learning button 1 or learning button 2 (over 5S), after the LED light goes out, the controller will automatically clear the content in the memory. To reuse it, just learn it again.

Specifications:

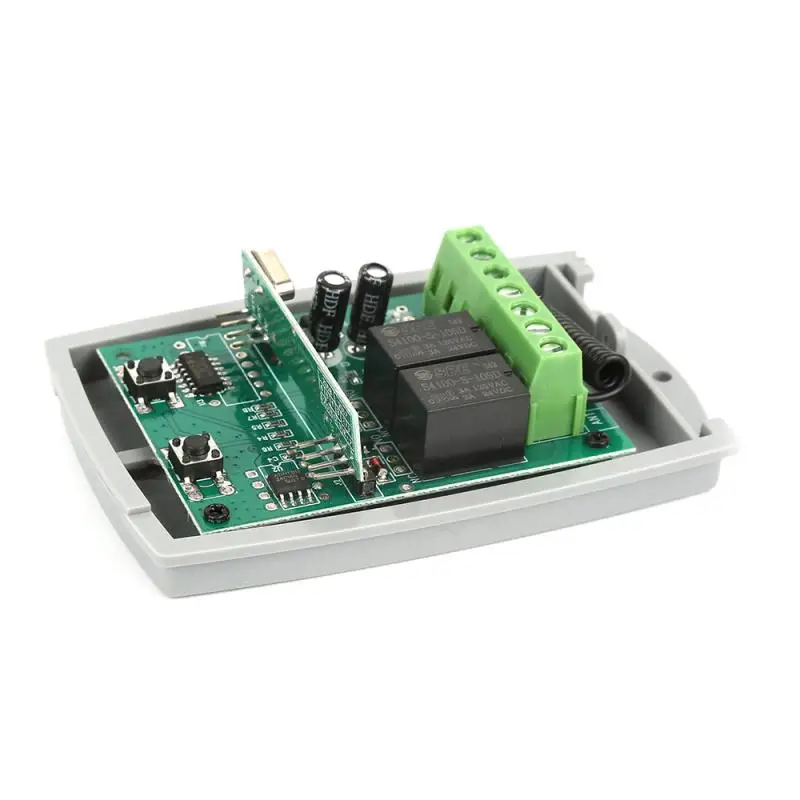

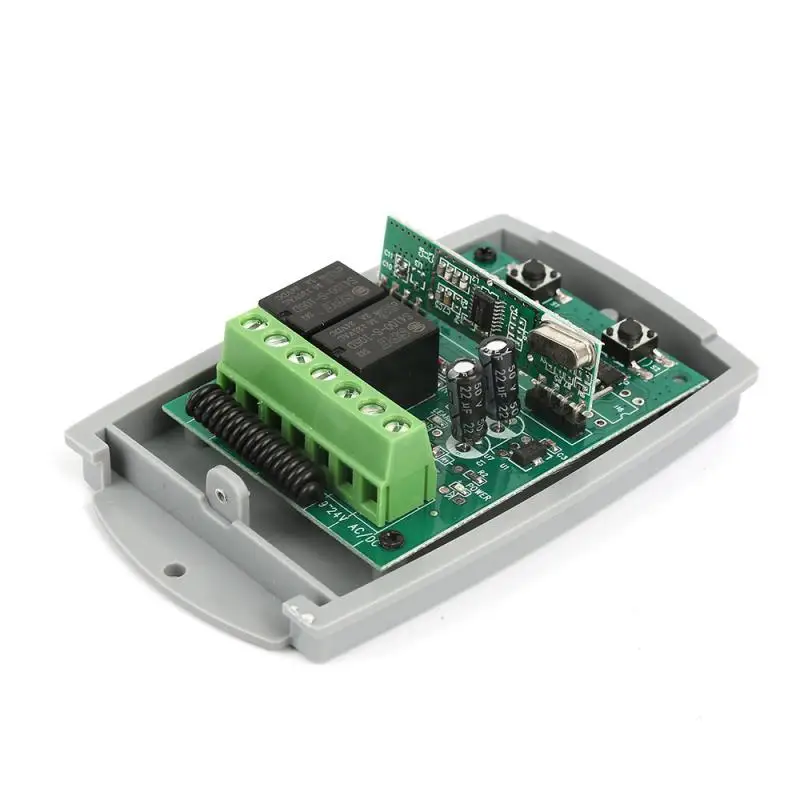

Name: Wireless Intelligent Receiving Controller

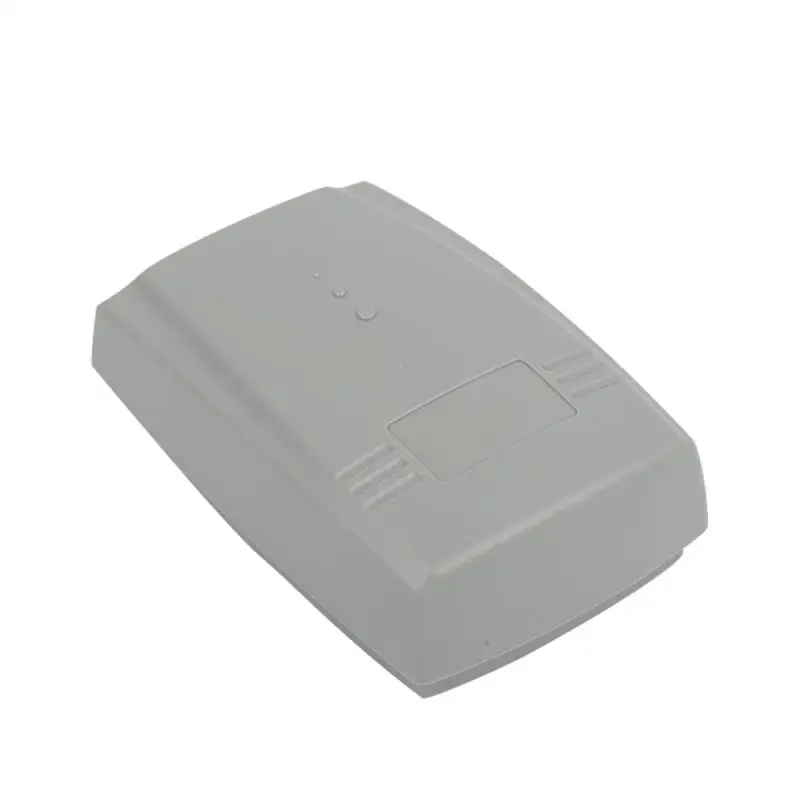

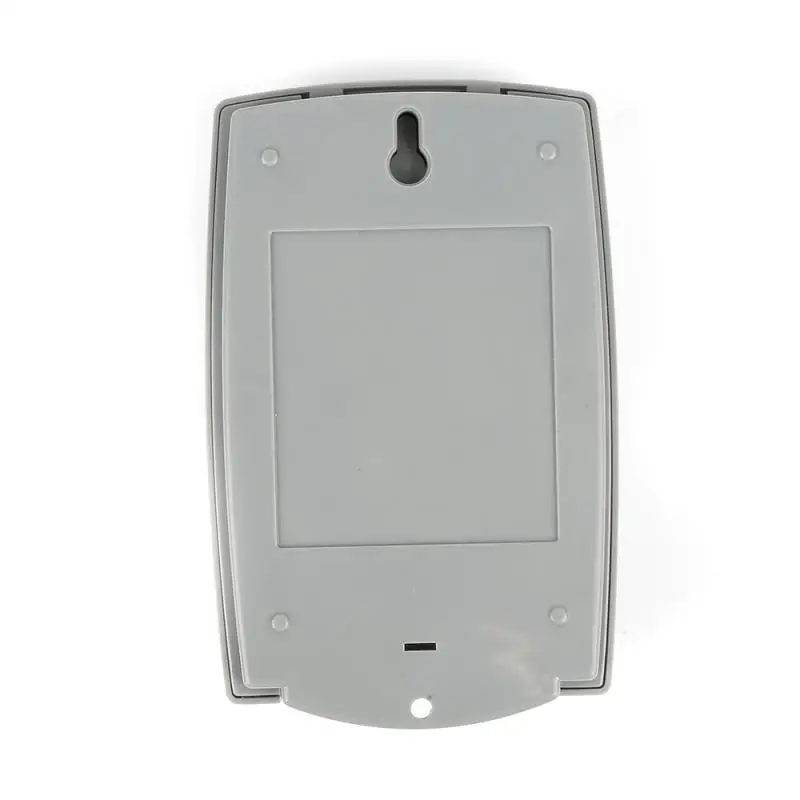

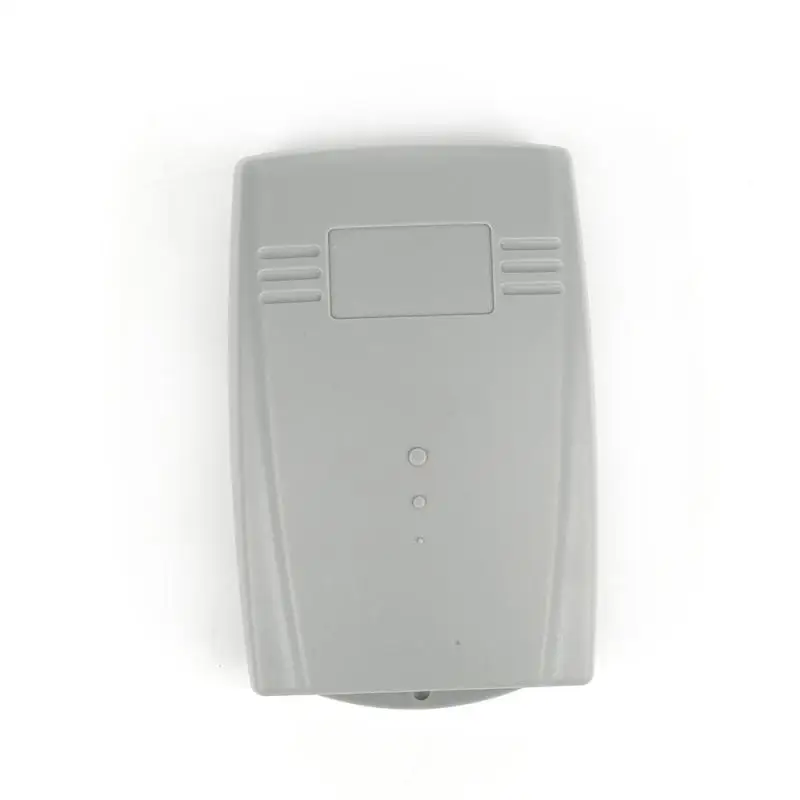

Size: 94mm*60mm*28.5mm

Working voltage: AC/DC 9V—24V

Static working current: ≤7mA

Working temperature: -40℃-+80℃

Receiving sensitivity: ≥-112dBm

Working frequency: 433MHz

Contact current: ≤3A

Remote control capacity: 400

Uses: Mainly used in electric doors, windows, lifting equipment, gates, elevators, industrial control and security industries and other fields.

This product is a general-purpose intelligent controller that can be used with most wireless remote controls on the market, including fixed codes (2262, 2260, 2264, 5326, M1E, M5E, etc.), learning codes (1527, 2240, 6P20B) , 6P20D, etc.), rolling codes (HCS301, HCS300, HCS200, HCS201, HCS100, HCS101, etc.) and some customized remote controls

Compatible Brands:

For DEA: 433-1, 433-2, 433-4, GENIE, PUNTO2/4

For BFT: MITT02/4; B RCB02/04; KLEIO B RCA02/04; TRC1/TRC2/TRC3

For V2: Phoenix2; Phoenix4; PHOX2; PHOX4; PHOX-2; TSC, TRC, TXCV2 HANDY

For CAME: TOP32SA;

TOP432A, TOP434A;

TOP432FV, TOP434EV;

TOP432M, TOP434M;

TOP432NA, TOP434NA;

TOP432S, T432, T434;

TW12, TWIN4;

TAM43SA

For TORMATIC: MAX 43-2;

For NOVO 502 2-CH;

For TORMATIC MAX 43-4;

For NOVO 504 4-CH;

For TORMATIC MNHS433-02 43-2;

For MNHS433-04;

For TORMATIC MCHS43-2

ForNOVOFERM: For NOVOTRON 502 MAX 43-2;

For NOVOTRON 502 MAX 43-4;

For MNHS433-02, MNHS433-04;

For MCHS43-2;

For MIX43-2,For 512

Package Included:

1pcs receiver

1pcs English manual
